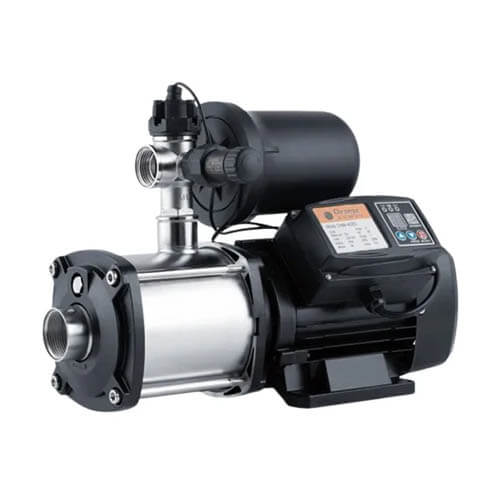

ORANGE CHM4-ES HORIZONTAL MULTISTAGE CENTRIFUGAL PUMP SERIES (0.5HP / 0.75HP / 1.0HP) (COMPLETE)

BRAND: ORANGE

CHM ES Catalogue.pdf

APPLICATION FIELDS

• Air conditioning system
• Filling machinery
• Water supply and pressurization system
• Cooling system
• Industrial cleaning
• Aquaculture
• Water treatment application
• Supporting use of chiller
• Family water supply

APPLICATIONS LIMITS

• Thin, clean, non-combustible, and non-explosive liquid containing no solid particle or fiber
• Applicable to deliver tap water, alkaline mineral water, softened water, or mildly corrosive medium
• The use of a large-power motor must be considered when the density or viscosity of the medium delivered is higher than that of water
• Medium temperature: 0℃ -70℃ for normal temperature type: 0℃ ~120℃ for hot water type
• Ambient temperature: 0℃ -+50℃
